4L60E Parts Used in the Build
Click on the images or buttons to shop for parts
4L60E Parts
Part #
Description
Manufacturer
19125258 (24241248)
Input Carrier (5 Pin Planetary, Front)
AC Delco
4L63
Transmission to Transfer Case Adapter
Novak Conversions
19356510 (24241255) (24217157)
Reaction Carrier Shaft
AC Delco
24217328
Reaction Carrier Thrust Bearing
AC Delco
24236092
Reaction Carrier Thrust Bearing
AC Delco
24241244
Reaction Carrier (5 Pin Planetary, Rear)
AC Delco
24233619
Reaction Internal Gear
AC Delco
24225931
Internal Reaction Gear Support
AC Delco
8685043
3-4 Clutch Apply Ring
AC Delco
8685244
3-4 Clutch Spring
AC Delco
8667035
Input Shaft Fluid Seal
AC Delco
24241477
Heavy Duty Forward Clutch Sprag
AC Delco
GM92
Torque Converter
Shift Rite
77733-06K
Sun Gear Smart Shell
Sonnax
77733-11S
300mm Billet Heat Treated Input Shaft
Sonnax

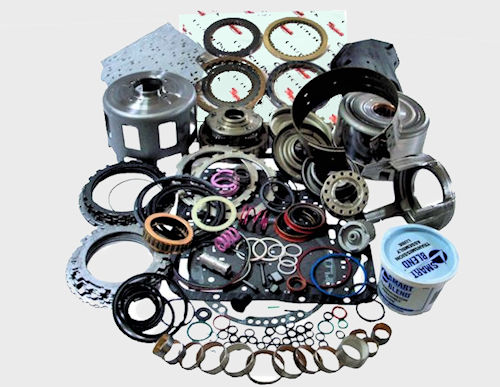

4L60E19972003BLPL-L3
Level 3 Blue-Plate Rebuild Kit
TruTech Transmission
24241250
Reaction Sun Gear
AC Delco

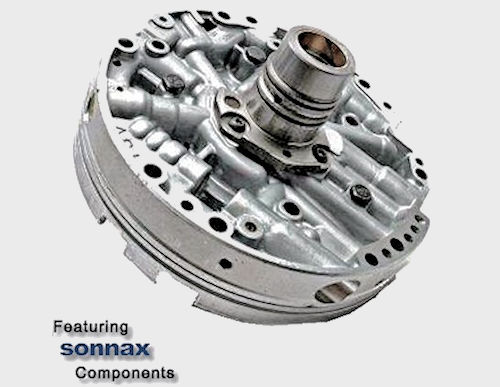

P74500G9704-03
Premium Pump
TruTech Transmission

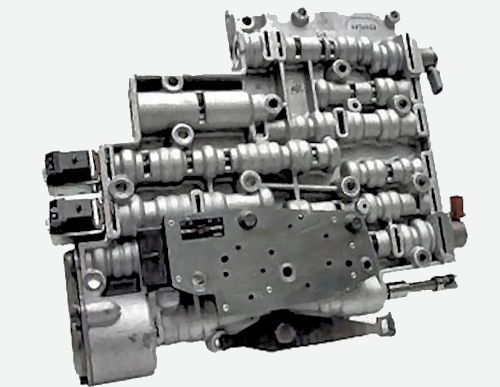

RFVB250754509603-03
AC Delco Remanufactured Valve Body
TruTech Transmission
77911-03K
2nd Gear Super Hold Servo Kit
Sonnax
77767K
Super 4th Servo
Sonnax
24215111
Manual Valve Position Pressure Switch
AC Delco
HP-4L60E-01
Sonnax Performance Pack
Sonnax
77010-76
Servo Release Check Valve
Sonnax
77010-01
Wide Sun Gear Bushing
Sonnax
8680027
Case To Output Shaft Bushing
GM
12143296
Internal Wire Harness with Anti-bleed Lock-up Solenoid
Rostra

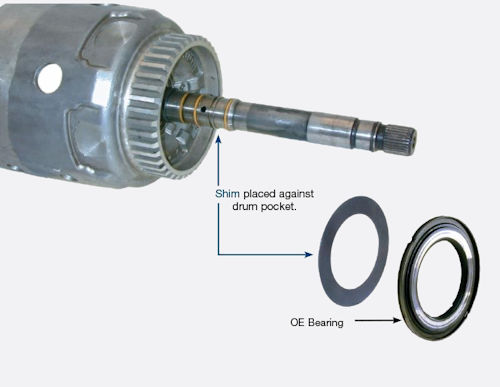

77409-15
Input Drum Shim Pack
Sonnax
HZ-7599-PBK
Steel Transmission Pan Black
CFR Performance
HZ-9062-PBK
Black Magnetic Drain Plug
CFR Performance
XATS64L60EBB
Black 16in Automatic Transmission Shifter
Lokar
24212327
3-2 Shift Solenoid Valve
AC Delco
24222404
Manual Shift Detent Lever
AC Delco
8667574
Park Pawl Actuator Bracket
AC Delco
24235194
Manual Shift Shaft with Seal
AC Delco
8642247
Manual Shift Detent
AC Delco
24235438
Park Pawl Actuator
AC Delco
24229422
Park/Neutral Position and Back-Up Lamp Switch
AC Delco
15820590
Automatic Transmission Vent with Hose
AC Delco
230-7304
Torque Converter Bolt Kit
ARP
Back to Top
*Not affiliated with TruTech Transmissions, or Novak Conversions
