Build Parts and Services Lists


Wiring Harness Connectors and Parts

Part # Description Source


PCM Connectors


Micro-Pack 100W 80-way Female Connector Delphi
15354962 Dress Cover Delphi
12176408 Retainer,Blue (2 required) Delphi
12176410 Retainer,Red (2 required) Delphi
15358857 Retainer,Green (2 required) Delphi
12084912 Terminal,Female,18ga Delphi
12084913 Terminal,Female,20ga Delphi
13544665 Cavity Plug,Light Blue Delphi


4L60E Round Connector


Micro-Pack 100W 20-base 14-Way Female Connector Delphi
12160494 Terminal Protection Lock Delphi
12084912 Terminal,Female,18ga Delphi
12084913 Terminal,Female,20ga Delphi
13544665 Cavity Plug,Light Blue Delphi
12110725 Wire Dress Delphi


Neutral Safety Switch Connector


Metri-Pack 150 4-Way Female Connector Delphi
12129802 Terminal Protection Lock Delphi
12146029 Connector Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324973 Cable Seal,White,18ga Delphi
15324976 Cable Seal,Blue,20ga Delphi


Gear Selector Switch Connector


Metri-Pack 150 280 7-Way Female Connector Delphi
12129841 Terminal Protection Lock Delphi
12020833 Connector Protection Lock Delphi
12048074 Terminal,Female,150,18ga Delphi
12084200 Terminal,Female,150,20ga Delphi
12129493 Terminal,Female,280,14-12ga Delphi
15324976 Cable Seal,150,White,18ga Delphi
15324981 Cable Seal,Blue,280,14-12ga Delphi
15324974 Cable Seal,Blue,150,20ga Delphi


Crankshaft Sensor Connector


Metri-Pack 150 3-way Female Connector Delphi
12052845 Terminal Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


Camshaft Sensor Connector


Metri-Pack 150 3-way Female Connector Delphi
12052845 Terminal Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
15324976 Cable Seal,White,18ga Delphi


EV6 Injector Connector


GT 150 2-way Female Connector Delphi
13821935 Connector Protection Lock Delphi
15423278 Terminal Protection Lock Delphi
12191819 Terminal,Female,18ga Delphi
12191818 Terminal,Female,20ga Delphi
15366021 Cable Seal,White,18ga Delphi
15366060 Cable Seal,Blue,20ga Delphi


Knock Sensor Harness Connector


Metri-Pack 150 2-way Male Connector Delphi
12052634 Terminal Protection Lock Delphi
12045773 Terminal,Male,18ga Delphi
12077628 Terminal,Male,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


Knock Sensor PCM Side Connector


Metri-Pack 150 2-way Female Connector Delphi
12052634 Terminal Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


Knock Sensor Connector


Weather-Pack 1-way Male Connector Delphi
12089040 Terminal,Male,18-20ga Delphi
15324983 Cable Seal,Red,18-20ga Delphi


Coil Pack Coil Side Connector


Metri-Pack 150 7-way Male Connector Delphi
12047936 Terminal Protection Lock Delphi
12045773 Terminal,Male,18ga Delphi
12077628 Terminal,Male,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi
15495786 Metal Clip Delphi


Coil Pack PCM Side Connector


Metri-Pack 150 7-way Female Connector Delphi
12066304 Terminal Protection Lock Delphi
12020833 Connector Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


D585 Coil Connector


GT 150 4-way Female Connector Delphi
15305028 Terminal Protection Lock Delphi
15326267 Terminal,Female,18ga Delphi
15326266 Terminal,Female,20ga Delphi
15305351 Cable Seal,Yellow,16-20ga Delphi


VSS Connector New Style


GT 150 2-way Female Connector Delphi
15305024 Terminal Protection Lock Delphi
15326267 Terminal,Female,18ga Delphi
15326266 Terminal,Female,20ga Delphi
15305351 Cable Seal,Yellow,16-20ga Delphi


Coolant Connector New Style


GT 150 2-way Female Connector Delphi
15305024 Terminal Protection Lock Delphi
15326267 Terminal,Female,18ga Delphi
15326266 Terminal,Female,20ga Delphi
15305351 Cable Seal,Yellow,16-20ga Delphi


Idle Air Control Connector New Style


GT 150 4-way Female Connector Delphi
15326267 Terminal,Female,18ga Delphi
15326266 Terminal,Female,20ga Delphi
15305351 Cable Seal,Yellow,16-20ga Delphi


Air Intake Temp Connector New Style


GT 150 2-way Female Key Connector Delphi
15317832 Connector Protection Lock Delphi
15305024 Terminal Protection Lock Delphi
15326267 Terminal,Female,18ga Delphi
15326266 Terminal,Female,20ga Delphi
15305351 Cable Seal,Yellow,16-20ga Delphi


MAP Sensor Connector


Metri-Pack 150 3-Way Female Delphi
12052845 Terminal Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


Throttle Position Sensor Connector


GT 150 3-Way Female Delphi
15452678 Terminal Protection Lock Delphi
15326267 Terminal,Female,18ga Delphi
15326266 Terminal,Female,20ga Delphi
15305351 Cable Seal,Yellow,16-20ga Delphi


Oil Pressure Sensor Connector


Metri-Pack 150 4-Way 1 Useable Female Delphi
12066176 Terminal Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


Mass Airflow Sensor Connector


Metri-Pack 150 3-Way Female Delphi
12052845 Terminal Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


Alternator 4-Pin Connector


Metri-Pack 150 4-Way Female Delphi
12047948 Terminal Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


Square Body O2 Sensor Connector


Metri-Pack 150 4-Way Female Delphi
12160480 Terminal Protection Lock Delphi
12077979 Connector Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


Gen IV Isolated Ground O2 Sensor Connector


Metri-Pack 150 5/4-Way Female Delphi
12092844 Terminal Protection Lock Delphi
12020833 Connector Protection Lock Delphi
12048074 Terminal,Female,18ga Delphi
12084200 Terminal,Female,20ga Delphi
15324976 Cable Seal,White,18ga Delphi
15324974 Cable Seal,Blue,20ga Delphi


F1 Camaro 17-Pin Engine Side Bulkhead Connector


Metri-Pack Mixed 17-way Female Delphi
12015511 Terminal Protection Lock Delphi
12034047 Terminal,280 Delphi
12020119 Terminal,480 Delphi
12020125 Terminal,630 Delphi


F1 Camaro 25-Pin Engine Side Bulkhead Connector


Metri-Pack Mixed 25-way Female Delphi
12015510 Terminal Protection Lock Delphi
12162412 Stabilizer Delphi
12034047 Terminal,280 Delphi
12020119 Terminal,480 Delphi
12020125 Terminal,630 Delphi


F1 Camaro 42-Pin Firewall Side Bulkhead Connector


Metri-Pack Mixed 42-way Female Delphi
12015510 Terminal Protection Lock Delphi
12015513 Cover Delphi
12033602 Cover Delphi
12034046 Terminal,280 Delphi
12015860 Terminal,480 Delphi
12015869 Terminal,630 Delphi

Fuse Blocks

Part # Description Source
15303-2-2-4 Power Distribution Module,10 Fuses/5 Relays,Bussed Both Sides Bussman
15303-4-0-4 Power Distribution Module,10 Fuses/5 Relays,No Buss Bussman
15303-6-2-4 Power Distribution Module,10 Fuses/5 Relays,Bussed Relay Bussman
12110853 Terminal,Female,Tangless,280,12-10ga Delphi
12110845 Terminal,Female,Tangless,280,14-12ga Delphi
12129409 Terminal,Female,Tangless,280,16-14ga Delphi
12110847 Terminal,Female,Tangless,280,18-16ga Delphi
15324981 Cable Seal,280,Blue,12ga Delphi
15324980 Cable Seal,280,Gray,14-16ga Delphi
15324982 Cable Seal,280,Green,18-20ga Delphi
12010300 Cavity Plug,280,Green Delphi
301-1A-C-R1-U03-12VDC Micro Relay,35A Chang Sen
B028-7012-0 Module Mounts (2 required) Bussman
184080F-01-1 Waterproof Circuit Breaker,80a Bussman
37702-1AN0022 Power Relay Module,Switchable Bussman

CJ7 Parts

Part # Description Source
MMCJ-G3 Engine Mount Kit Novak Conversions
4L63 Transfer Case Adapter Kit Novak Conversions
RMU Rear Transmission Mount Novak Conversions
8003 Jeep Body Mounting Kit Shell Valley
  Heavy Duty Fiberglass CJ7 Tub Craigslist
  OEM 20-Gallon Gas Tank Craigslist

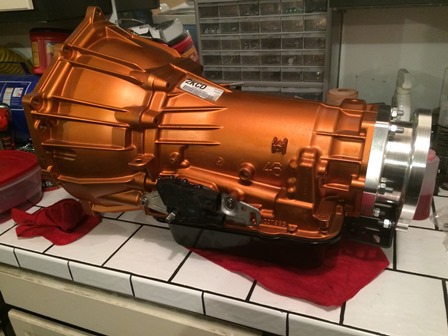

4L60E Parts

Part # Description Source
24241248 5-Pinion Front Planetary Amazon
24241255 Reaction Carrier Shaft Amazon
24217328 Torrington Bearing Amazon
24236092 Torrington Bearing Amazon
24241244 5-Pinion Rear Planetary Amazon
24233619 Reaction Gear Amazon
24225931 Hub Amazon
8685043 3-4 Clutch Apply Ring Amazon
8685244 3-4 Clutch Spring Amazon
8667035 Input Shaft Sealing Rings Amazon
24241477 Heavy Duty Forward Sprag Amazon
GM92 Torque Converter TruTech Transmission
77733-06K Sonnax Smart-Tech Input Drum Ebay
77733-11S Sonnax Heavy Duty Input Shaft TruTech Transmission
TT4L60E-RBLUEPLATE19972003-L3 Level 3 Blue-Plate Rebuild Kit TruTech Transmission
24241250 Sun Gear Amazon
TT4L60E-PMP-P74500G-19972004 Premium Pump TruTech Transmission
TTACD60E-RFVB25075450-19962003 AC Delco Remanufactured Valve Body TruTech Transmission
77911-03K Sonnax Super Hold 2nd Gear Servo Amazon
77767K Sonnax Super 4th Servo Amazon
24215111 Pressure Switch Amazon
HP-4L60E-01 Sonnax Performance Pack TruTech Transmission
77010-76 Sonnax Servo Release Check Valve Transmission Parts USA
77010-01 Sonnax Wide Sun Gear Bushing Transmission Parts USA
35634B Bronze Case Bushing Transmission Parts USA
12143296 Wiring Harness Amazon
77409-15 Input Drum Shim Pack Transmission Parts USA
HZ-9712-PBK Steel Deep Black Powdercoated Pan CFR Performance
HZ-9062-PBK Black Magnetic Drain Plug CFR Performance
XATS64L60EBB Lokar 16in Midnight Series Shifter Summit Racing
24212327 3-2 Downshift Solenoid Amazon
24222404 Manual Shift Detent Lever Amazon
8667574 Park Pawl Bracket Amazon
24235194 Manual Shift Shaft Amazon
8642247 Shift Detent Amazon
24235438 Park Pawl Actuator Amazon
12602448 Flexplate Amazon
24229422 Safety Start Switch Amazon

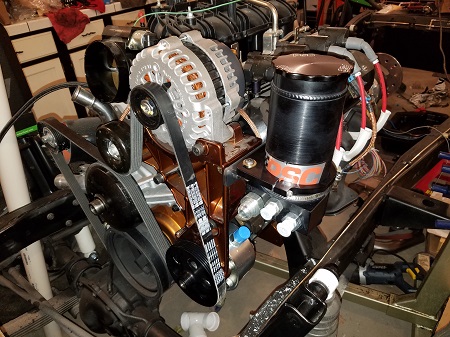

5.3L Parts

Part # Description Source
Machining Boil Block Dave's Crankshaft Service
Machining Turn Crankshaft .010 Dave's Crankshaft Service
Machining Balance Crankshaft Dave's Crankshaft Service
Machining Align Hone Main Bearing Bore Dave's Crankshaft Service
Machining Valve Job Dave's Crankshaft Service
MS-2199H-10 Clevite H .010 Main Bearings Brian Tooley Racing
CB-663HN-10 Clevite H .010 Rod Bearings Brian Tooley Racing
SUM-G1584 Block Plug Kit Summit Racing
SUM-G2621 Rear Cover Summit Racing
SUM-G6320 Front Cover Summit Racing
134-1502 ARP Front Cover Bolts Brian Tooley Racing
12577927 LS6 Lifter Valley Cover Brian Tooley Racing
12594779 PCV Hose Brian Tooley Racing
12560228 Crankshaft Sensor Summit Racing
11588712 Crankshaft Sensor Bolt Summit Racing
12589016 Cam Retainer Plate Brian Tooley Racing
11561455 Cam Retainer Bolts Brian Tooley Racing
134-1003 ARP Cam Bolts Brian Tooley Racing
5315 Morel Drop-in Lifters Brian Tooley Racing
12551163 Lifter Tray Bolt Brian Tooley Racing
12595365 Lifter Tray Set Brian Tooley Racing
55000 SLP Double Roller Timing Chain Summit Racing
12558189 Windage Tray Summit Racing
24261712 Flexplate Cover, Right Hand Amazon
24261713 Flexplate Cover, Left Hand Amazon
1453658 Bellhousing Dowel Pin Summit Racing
12570326 Cylinder Head Dowel Pin Summit Racing
1675-16 Ultra Pro Magnum Roller Rockers Comp Cams
4854-8 5/16 Pushrod Guide Plates Comp Cams
4554-16 3/8 Screw-in Rocker Studs Comp Cams
511-16 Viton Valve Seals Comp Cams
26925-16 Dual Valve Springs, .650 Lift Comp Cams
4705-16 Spring Locator Washer, .060 Thick Comp Cams
717-16 Titanium Spring Retainers Comp Cams
8406-16 5/16 x 7.40 x .105 Wall Pushrods Comp Cams
623-16 Valve Locks Comp Cams
H1132CPA Sealed Power Flat Top Pistons Summit Racing
E-937K Sealed Power Rings Summit Racing
234-5608 ARP Main Studs Barlett Performance
SUM-4853L LS 5.3L Iron Engine Block Summit Racing
12607475 Gen IV Floating Pin Connecting Rods Ebay
799 Cylinder Heads, Used Craigslist
Multiple Numbers C6 Corvette Exhaust Manifolds, New Ebay
X1220217 Lokar Midnight Series Locking Dipstick Summit Racing

Steering Parts

Part # Description Source

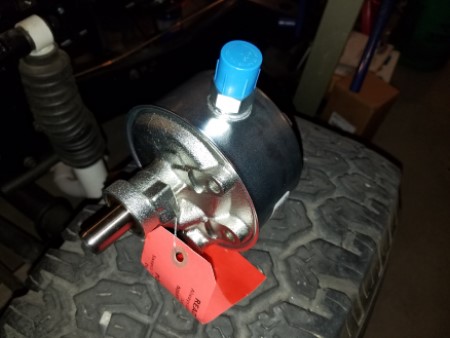

SP1400 80-Up P Series Pump PSC Motorsports
HK2024 Pressure Hose Assembly,O-ring Style PSC Motorsports
HE39106 Return Hose Adapter PSC Motorsports
PP2444A Pulley and Hub Assembly PSC Motorsports
SG062 Steering Gearbox,Variable Ratio PSC Motorsports
