CONNECTERS, TERMINALS, AND WIRES USED IN THE BUILD

Click the buttons to shop parts.*

Note: The build here is for a Gen III engine with a TBSS Intake and injectors.

PCM Connectors


Part #

Description

Manufacturer

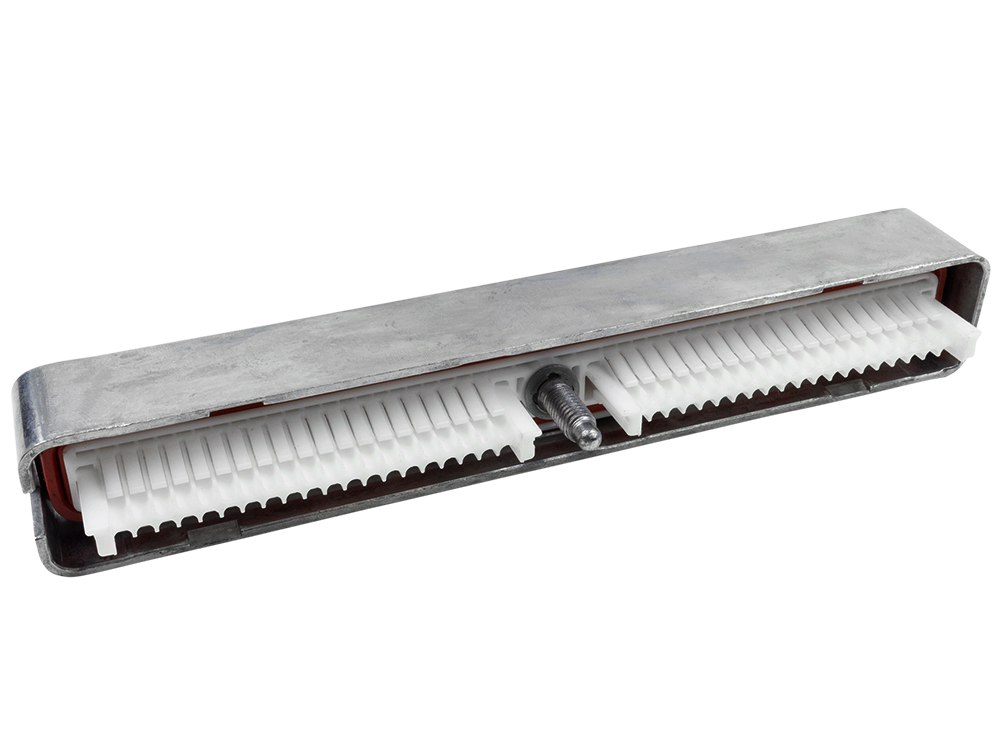

15492640 PCM Connector 15492640 Micro-Pack 100W 80-way Female Connector Delphi

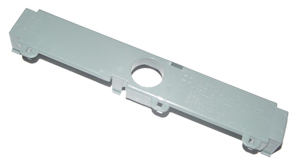

15354962 Dress Cover 15354962 Dress Cover Delphi

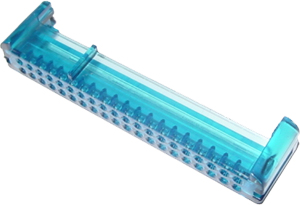

12176408 Blue Retainer 12176408 Retainer,Blue (2 required) Delphi

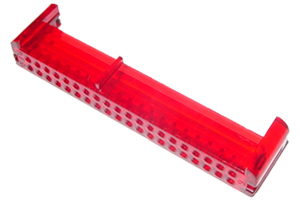

12176410 Red Retainer 12176410 Retainer,Red (2 required) Delphi

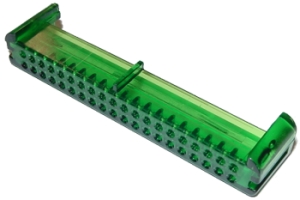

15358857 Green Retainer 15358857 Retainer,Green (2 required) Delphi
12084912 18ga Terminal 12084912 (15359002) Terminal,Female,18ga (replaced by 15359002) Delphi
12084913 20ga Terminal 12084913 (15359001) Terminal,Female,20ga (replaced by 15359001) Delphi

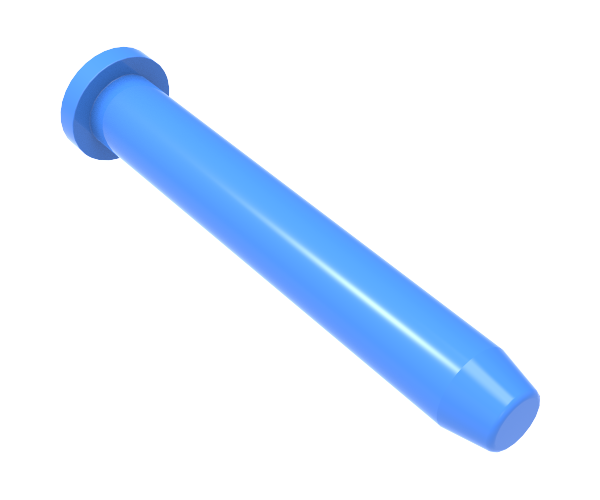

13544665 Cavity Plug 13544665 Cavity Plug,Light Blue Delphi
Red and Blue PCM Connector Set PCM Red & Blue Connector Set (no terminals)
Red PCM Connector Set PCM Red Connector with 12084913 20-22 ga Terminals
Green PCM Connector Set PCM Green Connector with 12084912 16-18ga Terminals
Blue PCM Connector Set PCM ECM Blue Connector with 12084912 16-18 ga Terminals
Back to Top

*Not affiliated with Aptiv(Delphi), Mouser Electronics, or EFI Connection.
