LS Harness Conversion Page 7


Figure 25
Figure 25

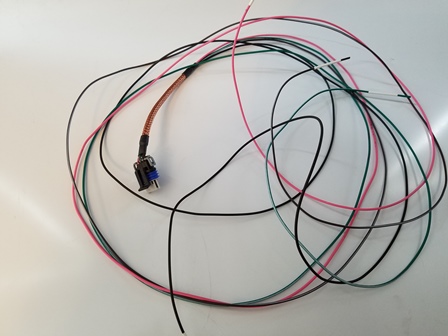

Figure 25. Coil 2 Connector, Delphi part number 15439568, terminal lock part number 15305028, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Black. Wire B is 18ga TXL Brown/White. Wire C is 18ga TXL Red/White. Wire D is 18ga TXL Pink. Wire A is hooked to engine block ground drivers side head. Wire B is hooked to Red PCM Connector pin 61, spliced to B Wire on coils 4, 6, and 8. Wire C is hooked to Red PCM Connector pin 67. Wire D is hooked to Injector Fuse B, spliced to D Wire on coils 4, 6, and 8.

Figure 26
Figure 26

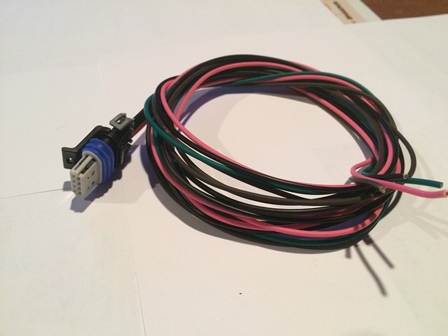

Figure 26. Coil 3 Connector, Delphi part number 15439568, terminal lock part number 15305028, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Black. Wire B is 18ga TXL Brown. Wire C is 18ga TXL Light Blue. Wire D is 18ga TXL Pink. Wire A is hooked to engine block ground behind power steering pump. Wire B is hooked to Red PCM Connector pin 60, spliced to B Wire on coils 1, 5, and 7. Wire C is hooked to Red PCM Connector pin 69. Wire D is hooked to Injector Fuse A, spliced to D Wire on coils 1, 5, and 7.

Figure 27
Figure 27

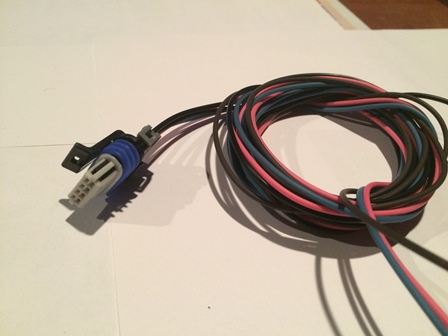

Figure 27. Coil 4 Connector, Delphi part number 15439568, terminal lock part number 15305028, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Black. Wire B is 18ga TXL Brown/White. Wire C is 18ga TXL Dark Green/White. Wire D is 18ga TXL Pink. Wire A is hooked to engine block ground drivers side head. Wire B is hooked to Red PCM Connector pin 61, spliced to B Wire on coils 2, 6, and 8. Wire C is hooked to Red PCM Connector pin 29. Wire D is hooked to Injector Fuse B, spliced to D Wire on coils 2, 6, and 8.

Figure 28
Figure 28

Figure 28. Coil 5 Connector, Delphi part number 15439568, terminal lock part number 15305028, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Black. Wire B is 18ga TXL Brown. Wire C is 18ga TXL Dark Green. Wire D is 18ga TXL Pink. Wire A is hooked to engine block ground behind power steering pump. Wire B is hooked to Red PCM Connector pin 60, spliced to B Wire on coils 1, 3, and 7. Wire C is hooked to Red PCM Connector pin 68. Wire D is hooked to Injector Fuse A, spliced to D Wire on coils 1, 3, and 7.
